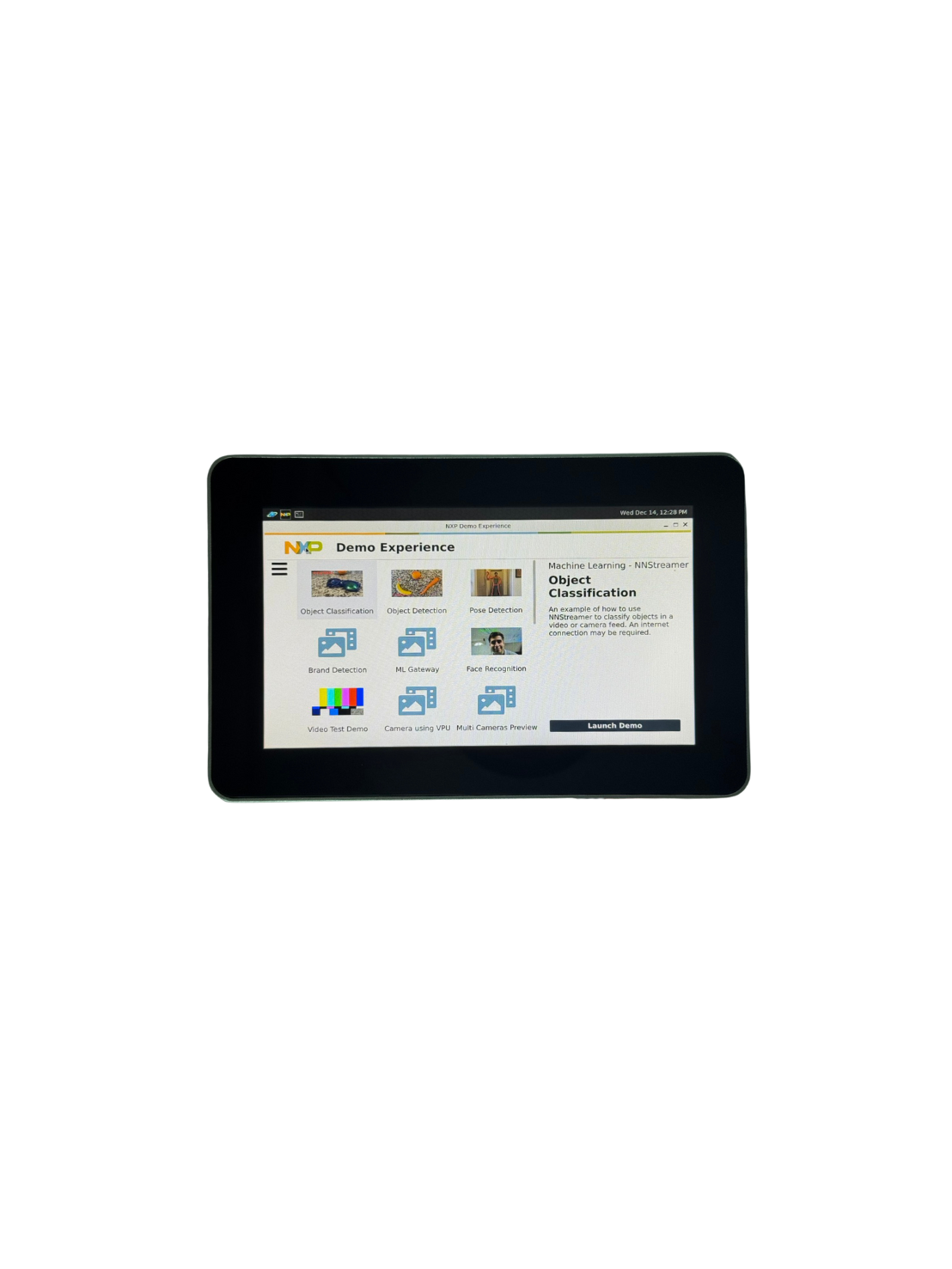

| LCD Size | 7” |
| Resolution | 1024(RGB)x600 |
| Brightness | 800 cd/m2 |
| LCD Type | Normally Black, full viewing angle |
| Viewing area | 155.21(W) x 86.92 (H) |
| Color | 262k colors |
| LED Lifetime | 50000 hr. |
| Touch |
| Touch Panel | 5 fingers Projected Capacitive Touch panel (PCTP) |
| Cover glass | 1.1mm chemical strengthened glass,6H |
| System |
| Processor | NXP® i.MX8M Plus ARM Cortex A53 Quad Core Up to 1.8GHz; Cortex-M7 core processor |
| Memory | LPDDR4X 2GB (expandable to 4GB Max) |
| Ethernet Lan port | 2 x RJ45 connector with indicate LED |
| Industry Version：2pcs(Default) , Consumer Version：1pcs |
| 10/100/1000 Mbps Base-Tx GbE compatible (RTL8211F) |
| Storage |
| eMMc | 16GB eMMC (expandable to 64GB Max) |
| I/O |
| COM Port | 2 x RS232 DB9 (optional RS485) |
| Communication | 2 x CAN Bus DB9 |

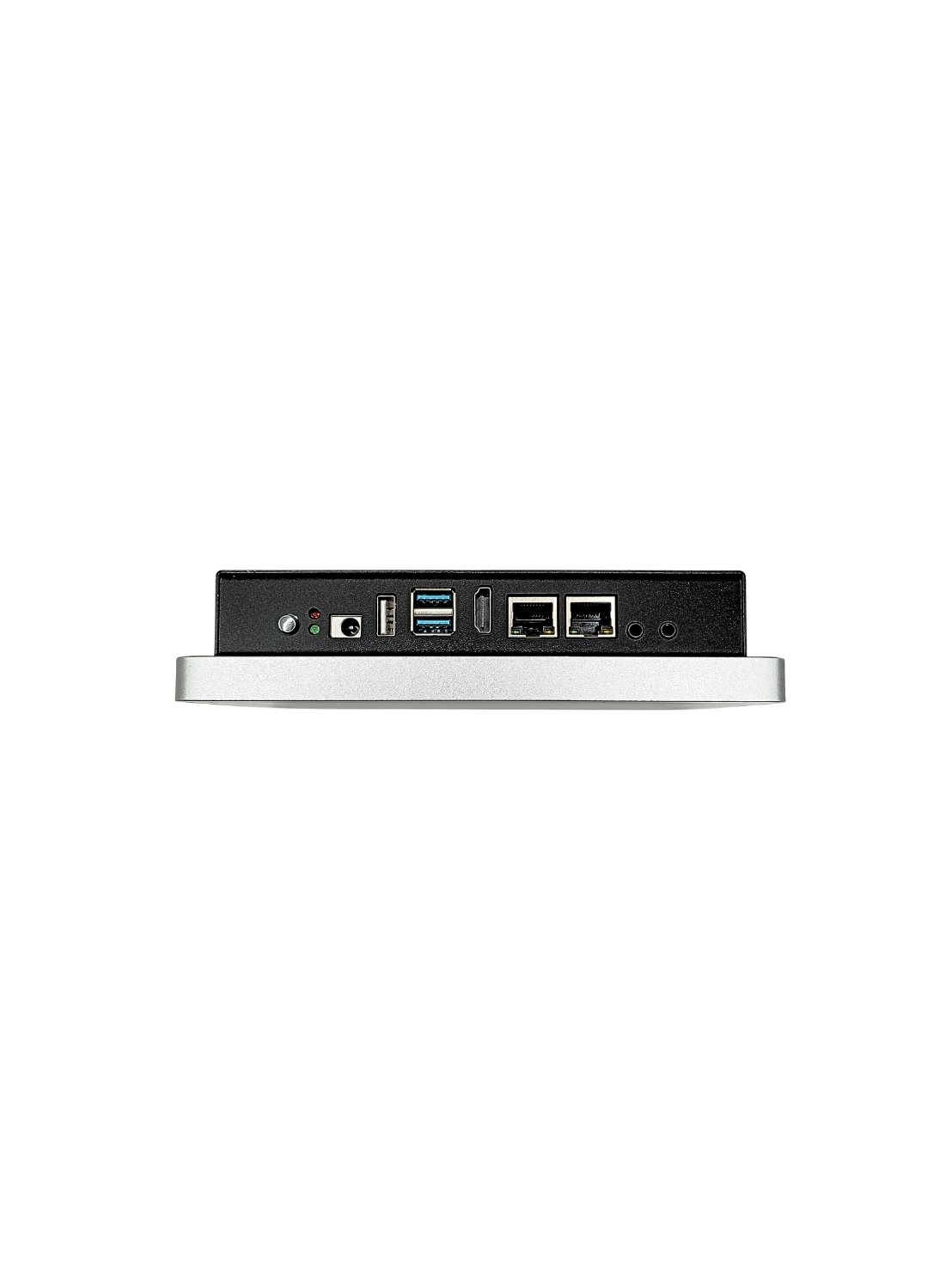

| External Connector | 1 x HDMI connector (Vertical type) |
| 1 x Audio-out 3.5 phone Jack |
| 1 x Line-In 3.5 phone Jack |
| 1 x Power/Status LED (Green/Red) |
| 2 x I2C PH2.0-4P connector |
| 3 x A2008 2x6P connector for GPIO |
| Internal Connector | 2 x MIPI CSI connector |
| 1 x DC connector with lock Header |
| 1 x TAG connector |
| 1 x MIPI DSI connector |
| 1 x LVDS connector |
| 1 x Backlight connector |
| 1 x USB connector (USB 2.0 for Touch panel) |
| 1 x PCIe M.2 M Key for NVMe SSD Storage (Option) |
| 1 x 3042 MINI PCIE for 3G/4G Module (USB Only / Option) |
| 1 x SIM Socket connector |
| 1 x Micro SD socket |
| 1 x PH2.0x4P Header (R/L Speaker) connector |
| 1 x PH2.0x2P Mic-In connector |
| 1 x Reset |
| USB | 2 x USB 3.0 Type A |
| 1x USB 2.0 Type A |
| 1x USB 2.0 by PH2.0-4P connector |
| Wi-Fi/Bluetooth | AP6256 |
| Wi-Fi 2.4G/5G 1Tx/1Rx 802.11 ac/a/b/g/n + BT 5.4 Module |
| Ethernet Lan port | 2 x RJ45 Connectors for Dual Gigabit LAN |
| Industry Version：2pcs |
| Video Decoder | 1080p60 HEVC,H.264,VP9,VP8 |
| Video Encoder | 1080p60 H.265,H.264 |
| Operation System |
| Linux | Yocto + QT6.3 |
| Linux 5.15.52 / Yocto QT6.3.2 |
| Power |
| Power Input Terminal | DC Jack |
| DC Input | DC 12V |
| Power consumption | 1A |
| Environment |
| Operation Temperature | -20 ~ 70℃ |
| Storage Temperature | -30 ~ 80℃ |
| Humidity | 10~90% RH @25℃ |
| EMC | EMC class B, EN55032 |
| ESD | Level 3 |
| Physical |
| Outline Dimension | 193(W) x 124(H) x 14.0/28.0(T) mm |
| Weight | 0.98kg |
